3.6/6KV Single Core Standard Wall Traction Cables



Applications :

  • Single core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts in direct current and alternating voltage technology, especially converter technology.

Standards :

  • BS 6853 -1a
  • DIN 5510-1 1-4
  • NFF 16-101 F0

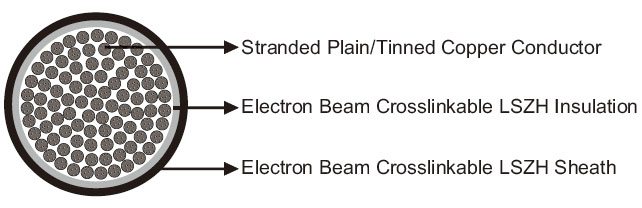

Construction :

  • Conductors : Circular Class 5 stranded plain or tinned copper to BS EN 60228: 2005 / BS 6360.
  • Insulation : Electron beam crosslinkable standard wall LSZH compound.
  • Outer Sheath : Electron beam crosslinkable LSZH compound.

Optional :

  • FRA-SW-6S-OS (Screened)
  • FRA-SW-6S-FR (Fire resistant)

Electrical Characteristics at 20 °C :

  • Nominal Conductor Cross Section mm² 1.5 2.5 4.0 6.0 10 16 25 35 50
    Maximum Conductor Resistance Ω/km 13.7 8.21 5.09 3.39 1.95 1.24 0.795 0.565 0.393
    Voltage Rating KV 3.6/6
  • Nominal Conductor Cross Section mm² 70 95 120 150 185 240 300 400
    Maximum Conductor Resistance Ω/km 0.277 0.21 0.164 0.132 0.108 0.0817 0.654 0.0495
    Voltage Rating KV 3.6/6

Mechanical and Thermal Properties :

  • Minimum Bending Radius : 3×OD (OD<12mm); 4×OD (OD>12mm).
  • Temperature Range : -40°C to +120°C.

Dimensions and Weight :



Cable Code No. of cores& Nominal
Conductor Cross Sectional Area
No.×mm²
Nominal Diameter of Strands
No/mm
Nominal Insulation
Thickness
mm
Nominal Overall
Diameter
mm
Nominal Weight
kg/km
FRA-SW-6S-1G2.5 1×2.5 50/0.25 3.0 11.4 170
FRA-SW-6S-1G4 1×4.0 56/0.30 3.0 12.0 190
FRA-SW-6S-1G6 1×6.0 84/0.30 3.0 12.5 230
FRA-SW-6S-1G10 1×10.0 80/0.40 3.0 13.4 300
FRA-SW-6S-1G16 1×16.0 126/0.40 3.0 14.5 360
FRA-SW-6S-1G25 1×25.0 196/0.40 3.0 16.0 450
FRA-SW-6S-1G35 1×35.0 276/0.40 3.0 17.3 560
FRA-SW-6S-1G50 1×50.0 396/0.40 3.0 19.0 720
FRA-SW-6S-1G70 1×70.0 360/0.50 3.0 20.8 930
FRA-SW-6S-1G95 1×95.0 475/0.50 3.0 22.6 1160
FRA-SW-6S-1G120 1×120.0 608/0.50 3.1 24.7 1430
FRA-SW-6S-1G150 1×150.0 756/0.50 3.1 26.3 1740
FRA-SW-6S-1G185 1×185.0 925/0.50 3.2 28.5 2080
FRA-SW-6S-1G240 1×240.0 1221/0.50 3.4 31.7 2730
FRA-SW-6S-1G300 1×300.0 1525/0.50 3.4 34.2 3230
FRA-SW-6S-1G400 1×400.0 2013/0.50 3.4 37.8 4210







Impact Resistant
Highly Flexible
UV Resistant
Oil Resistant
Weather Resistant
Low Toxicity





Flame Retardant
NF C32-070-2.1(C2)
IEC 60332-1/EN 50265-2-1
Fire Retardant
NF C32-070-2.2(C1)
IEC 60332-3/EN50266
Zero Halogen
IEC 60754-1/NF C20-454
EN 50267-2-1
Low Smoke Emission
IEC 61034/NFC20-902
EN 50268/NF C32-073
Low Corrosivity
EN 50267-2-2/NF C32-074
IEC 60754-2/NF C20-453
